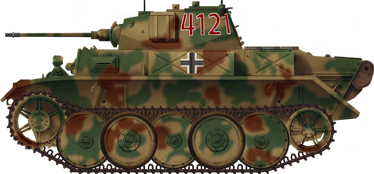

Panzer II Ausf.L




SurvivorsEdit

Panzer II Ausf.L Luchs Turret, turret number 602, Motor Technica Museum Bad Oeynhausen, Germany. This turret was loaned to the Motor Technica Museum in Bad Oeynhausen by WTS Koblenz. As the Bad Oeynhausen museum was closed down in 2007, it has presumably been returned to Koblenz.

StatisticsEdit

Number Built: 100 + 4 Prototypes

Hull Armor:

  • Front: 20-30mm
  • Sides: 20mm
  • Rear: 20mm
  • Top: 10mm
  • Bottom: 5.5mm

Turret Armor:

  • Front: 30mm
  • Mantlet: 30mm
  • Sides: 20mm
  • Rear:
  • Top: 10mm

Weight: 26,015 lbs (11,800 kgs) ~13 tons

Suspension Type:

Engine: Maybach HL 66 P (180hp, Gasoline, 8.650 liter, Water-Cooled, V6)

Top speed: 37.3 mph (60 kph)

Primary Weapon: 2cm KwK 38 with 320 rounds

Secondary Weapon: 7.92mm MG 34 with 2,250 rounds

Radio:

Crew: 4

Technical DataEdit

Length (Including Gun):

Hull Length:

Total Width:

Total Height:

Ground Clearance:

Track Width:

Ground Pressure:


Transmission:


Speed, Road:

Speed, Cross-Country:

Range, Road:

Range, Cross-Country:


Gradeability:

Side-Slope Performance:

Trench Crossing Ability:

Wall Climbing Ability:

Fording Depth:
