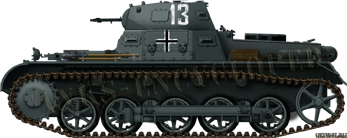

Panzer I Ausf.B





SurvivorsEdit

  • Panzer I Ausf.B "Hans Dellbrück", Fort Lee, Virginia. Recovered in Libya. Previously at Aberdeen, Maryland. Kept in storage.

StatisticsEdit

Number Built: 399?

Hull Armor:

  • Front: 8-13mm
  • Sides: 13-14.5mm
  • Rear: 13mm
  • Top: 8mm
  • Bottom: 5mm

Turret Armor:

  • Front: 14mm
  • Mantlet: 15mm
  • Sides: 13mm
  • Rear: 13mm
  • Top: 8mm

Weight: 12,787 lbs (5,800 kgs) ~6.39 tons

Suspension Type:

Engine: Maybach NL 38 Tr (100hp, Gasoline, 3.8 liter, Water Cooled, 6 cylinder)

Top speed: 24.9 mph (40 kph)

Primary Weapon: (2x) 7.92mm MG 13k

Secondary Weapon: None

Radio:

Crew: 2

Technical DataEdit

Length (Including Gun): 14ft 6.02in (4420mm)

Hull Length:

Total Width: 6ft 9.09in (2060mm)

Total Height: 5ft 7.71in (1720mm)

Ground Clearance: 11.61in (295mm)

Track Width: 11.02in (280mm)

Ground Pressure: ~7.25 psi (0.05 MPa)


Transmission: ZF F.G.31 (5+R)


Speed, Road: 24.9 mph (40 kph)

Speed, Cross-Country: 9.3 mph (15 kph)

Range, Road: 105.6 mi (170 km)

Range, Cross-Country: 71.5 mi (115 km)


Gradeability: 67% / 30°

Side-Slope Performance: unknown

Trench Crossing Ability: 55.1in (1.4m / 1400mm)

Wall Climbing Ability: 14.6in (0.37m / 370mm)

Fording Depth: 23.6in (0.6m / 600mm)
